Name: Set of 50/60-45-290 471
Brand: Single acting power unit - Professional Single acting hydraulic cylinder Manufacturer and Supplier
Availability: InStock
Rating: 4.5 (89 reviews)

Set of 50/60-45-290 471

Read More About hydraulic cylinder tubing

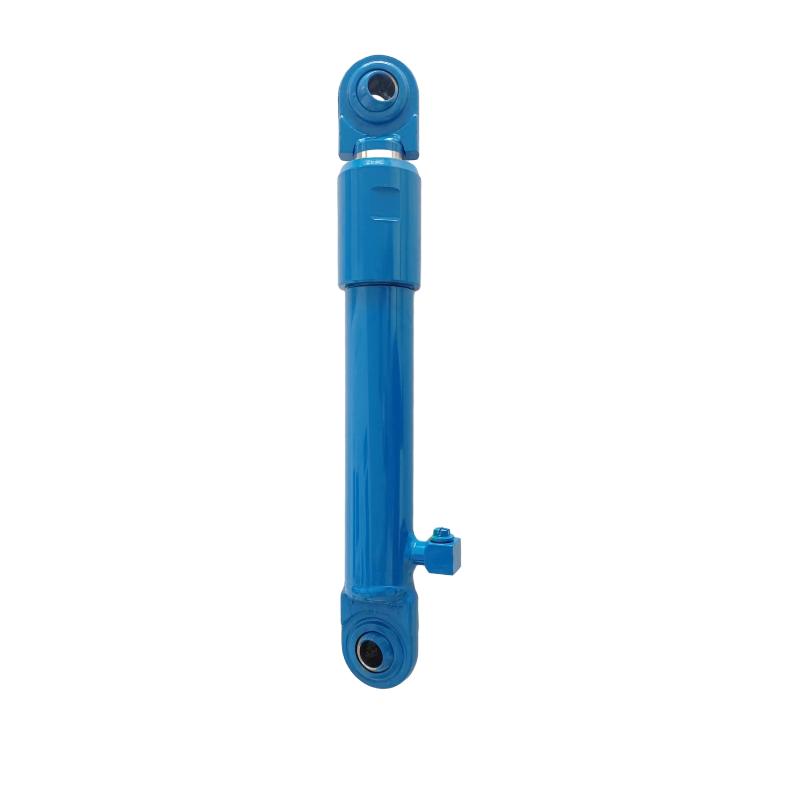

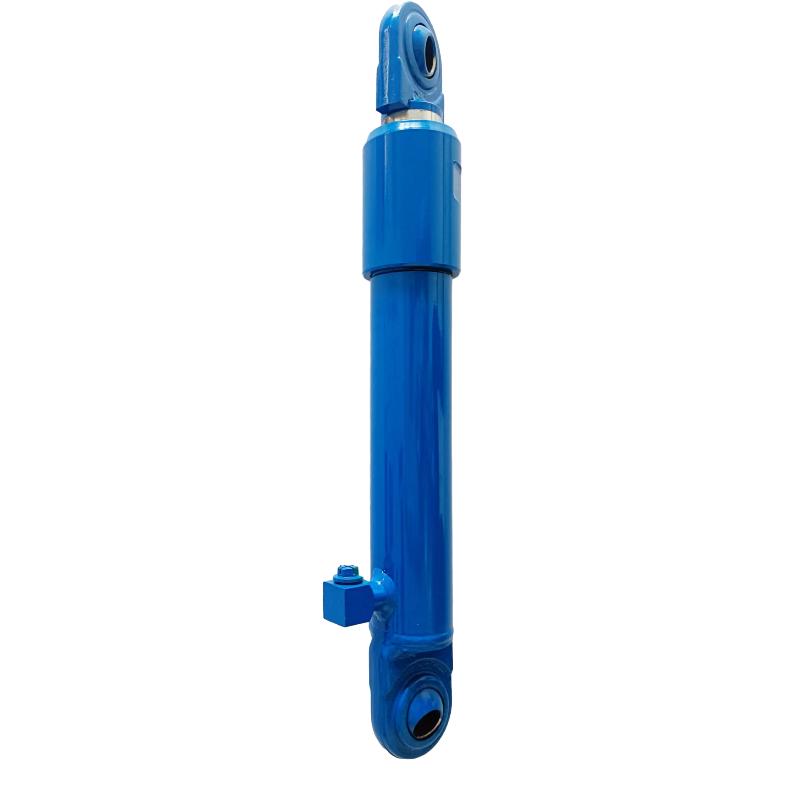

The cylinder of this hydraulic cylinder is a 50 / 60 inner wall rolling tube,20 carbon steel.
The piston rod is 45mm diameter, 45 carbon steel, chrome surface.

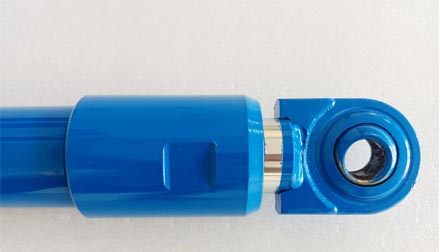

The earrings and cylinder bottom are pin-hole 22mm universal bearings.

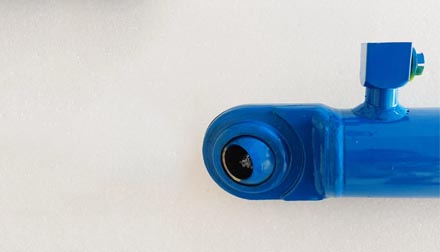

Oil mouth is G 3/8, oil tank surface blue paint.

Send Email to Us Download As PDF

Product Detail

Product Tags

Type specification

1.The cylinder is a rolling tube, the piston rod overall adjustment, unilateral chrome 0.02.
2.Piston, guide sleeve is steel parts processing.
3.The seals are sealed with the inlet material.
4.Spray alcohol and acid blue paint on the product surface.
5.The oil cylinder can be customized as needed.
Matters needing attention
1. 1.The hydraulic cylinder and the surrounding environment should be cleaned, the fuel tank should be sealed to prevent pollution, pipeline and fuel tank should be cleaned to prevent falling iron oxide, skin and other debris.
2. 2.Clean to use no velvet cloth or special paper, can not use hemp thread and adhesive as sealing material, hydraulic oil according to the design requirements, pay attention to the change of oil temperature and oil pressure.
3. 3.The pipe connection shall not be relaxed.
4. 4.The base of the fixed hydraulic cylinder must have enough stiffness, otherwise the cylinder cylinder into a bow up, easy to make the piston rod bending.
5. 5.The central axis of the moving cylinder with the foot seat fixed should be concentric with the middle line of the load force to avoid the lateral force, which can easily make the seal wear and damage the piston, and keep the hydraulic cylinder parallel with the moving direction of the moving object on the rail surface, and the parallelism is generally not greater than 0.05mm / m.
