Name: 90/105-50-180-480
Brand: Single acting power unit - Professional Single acting hydraulic cylinder Manufacturer and Supplier
Availability: InStock
Rating: 4.5 (89 reviews)

90/105-50-180-480

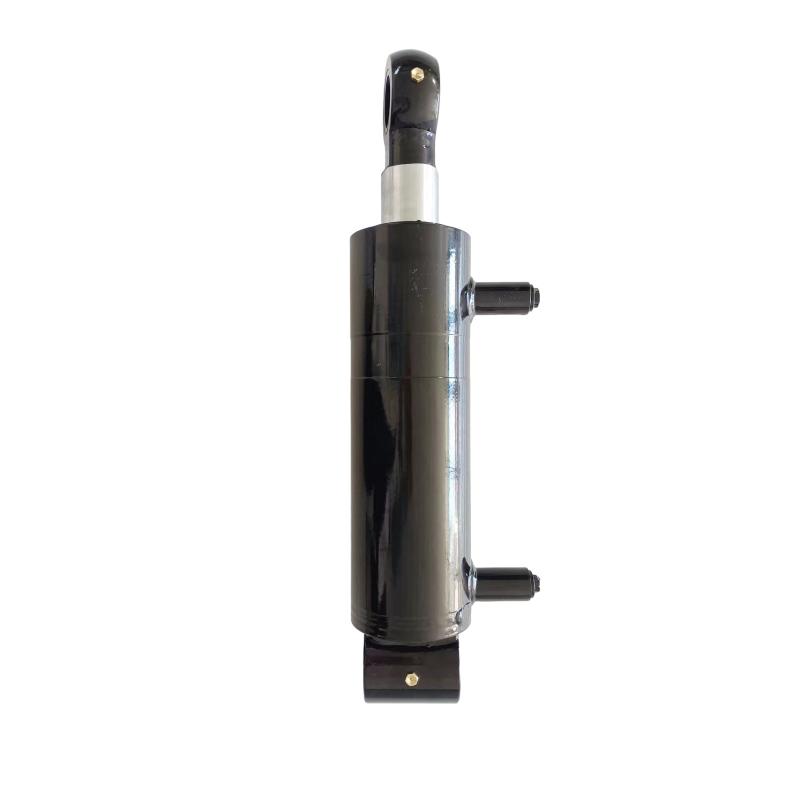

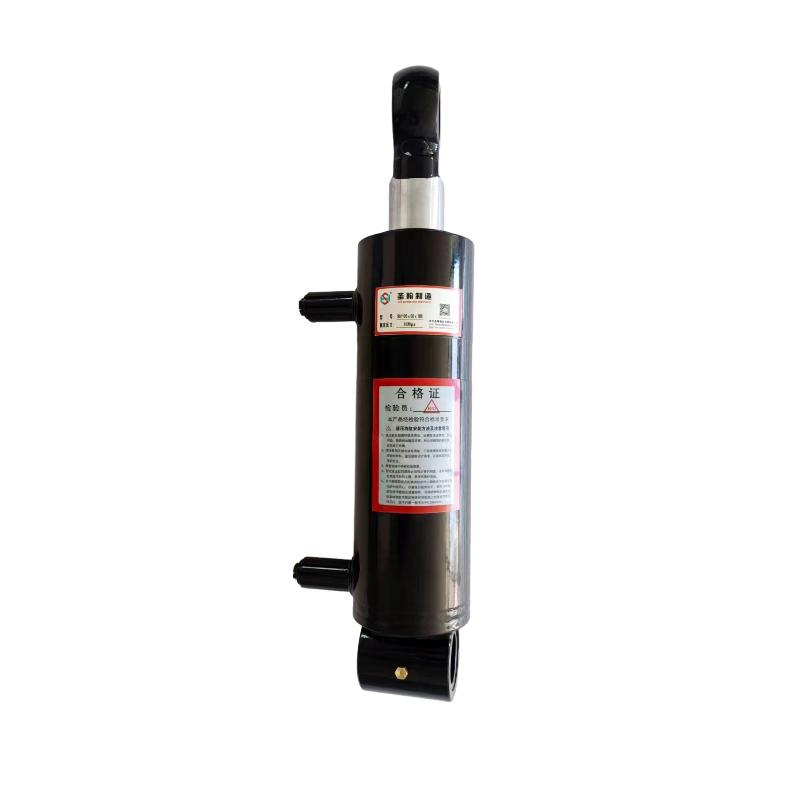

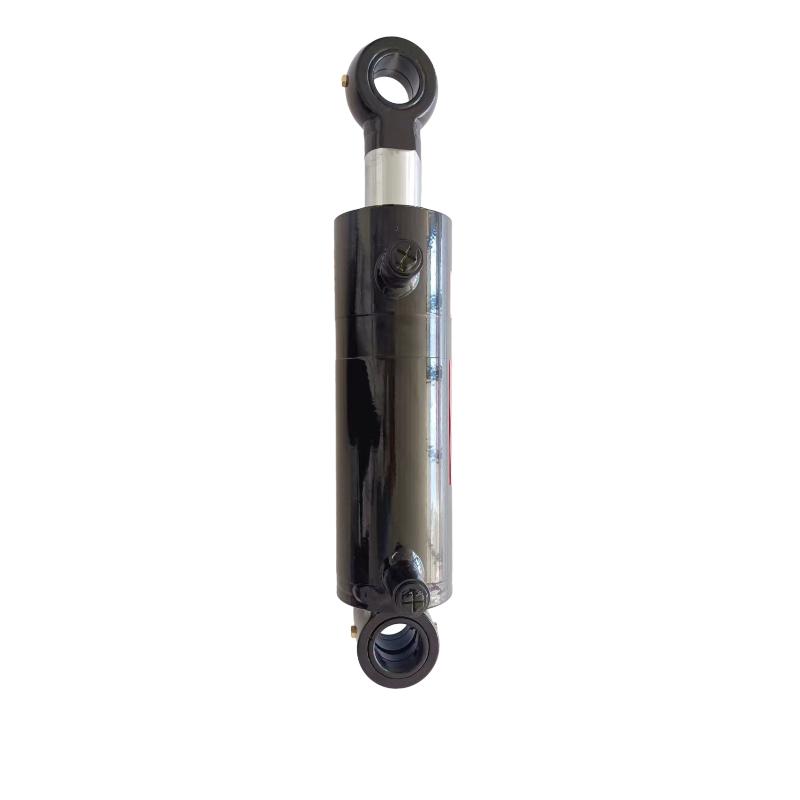

The cylinder of this hydraulic cylinder is a 90 / 105 inner wall rolling pipe, number 20 carbon steel.
The piston rod is 45mm diameter, 50carbon steel, chrome surface.

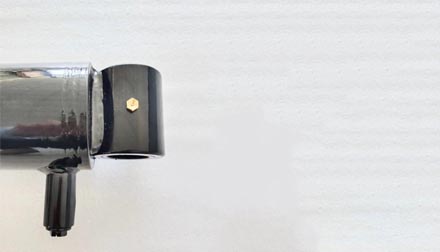

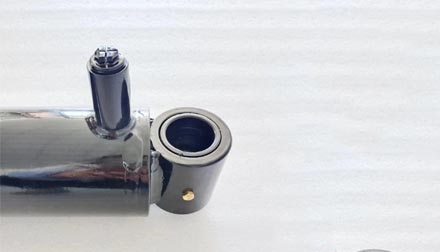

Install 40 * 50 steel sleeve for earrings and cylinder bottom.
The cylinder surface with black paint.

Send Email to Us Download As PDF

Product Detail

Product Tags

Application

1.The cylinder is a rolling pipe, the piston rod side chrome 0.01.
2.Grey iron piston, steel guide sleeve processing.
3.The seals are sealed with the inlet material.
4.Product surface spray alcohol acid black paint.
5.The oil cylinder can be customized as needed.
Matters needing attention
1. 1.The hydraulic cylinder and the surrounding environment should be cleaned, the fuel tank should be sealed to prevent pollution, pipeline and fuel tank should be cleaned to prevent falling iron oxide, skin and other debris.
2. 2.Clean to use no velvet cloth or special paper, can not use hemp thread and adhesive as sealing material, hydraulic oil according to the design requirements, pay attention to the change of oil temperature and oil pressure.
3. 3.The pipe connection shall not be relaxed.
4. 4.The base of the fixed hydraulic cylinder must have enough stiffness, otherwise the cylinder cylinder into a bow up, easy to make the piston rod bending.
5. 5.The central axis of the moving cylinder with the foot seat fixed should be concentric with the middle line of the load force to avoid the lateral force, which can easily make the seal wear and damage the piston, and keep the hydraulic cylinder parallel with the moving direction of the moving object on the rail surface, and the parallelism is generally not greater than 0.05mm / m.
