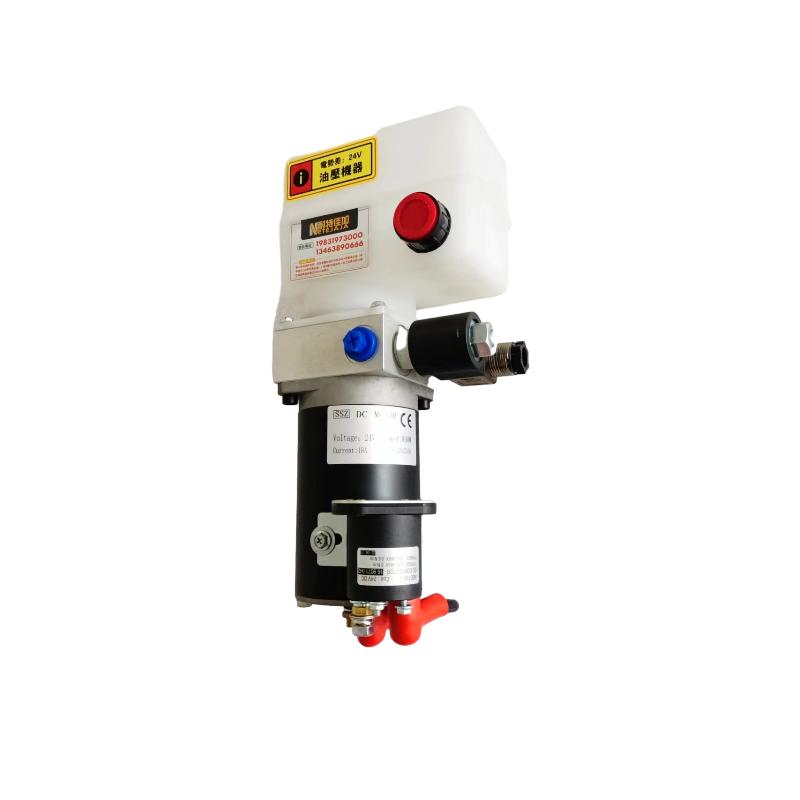

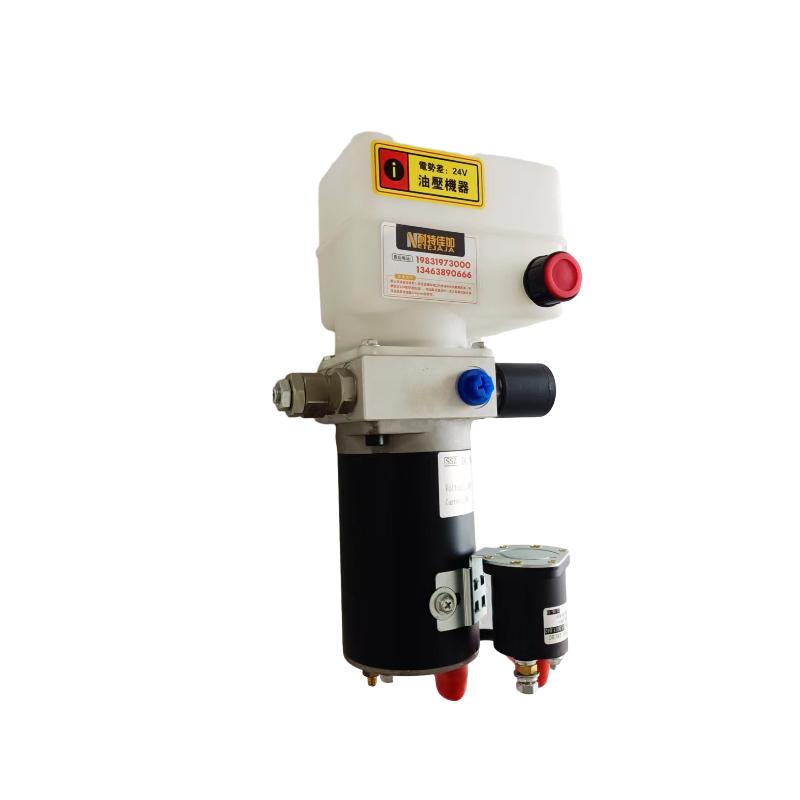

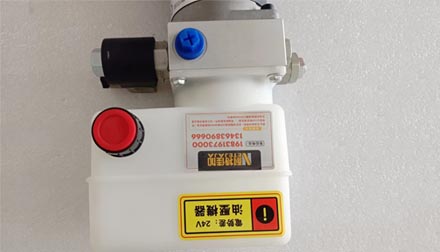

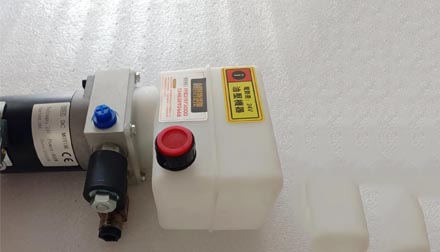

Pallet truck power uniets

Consisting of high pressure gear pump,Low noise DC motor,multifunctional manifold,valvestank, ect, This power unit can be widely used in the industry of logistic devicessuch as minifork lift ectThe lowering movement is controlled by the solenoid valve with thespeed controlled by the balance valve.

Send Email to Us Download As PDF

Product Detail

Product Tags

Model specifications

Remark: 1. If you need diferent flow pump pressure motor power and other system parameters. Please refer to the model description of the wave pressure power unt.

Manual emergency oil release, if required. Please specify when you place an order.

Motor voltage	power of motor	Displacement ml/r	Overflow valve pressure/Mpa	Tank capecity	L（mm）
24V	0.8KW	0.5	16	1.0L	307
		0.63
		0.5		1.5L	337
		0.63
		0.75	16.5	1.0L	335

Matters needing attention

1.The power unit is of S3 duty, which can only work intermittently andrepeatedly,ie., 1minute on and 9 minutes off.

2.Clean all the hydraulic parts concerned before mounting the power unit..

3.Viscosity of the hydraulic oil shoud be 15-68 cst,which should also be cleanand free of impurities.N46 hydraulic oil is recommended.
4.This power unit should be mounted vertically.
5.Check the oil level in the tank after the first star of the power unit.
6.Oil changing is required after the initial 100 operation hours, afterwardsonce every 3000 hours.
