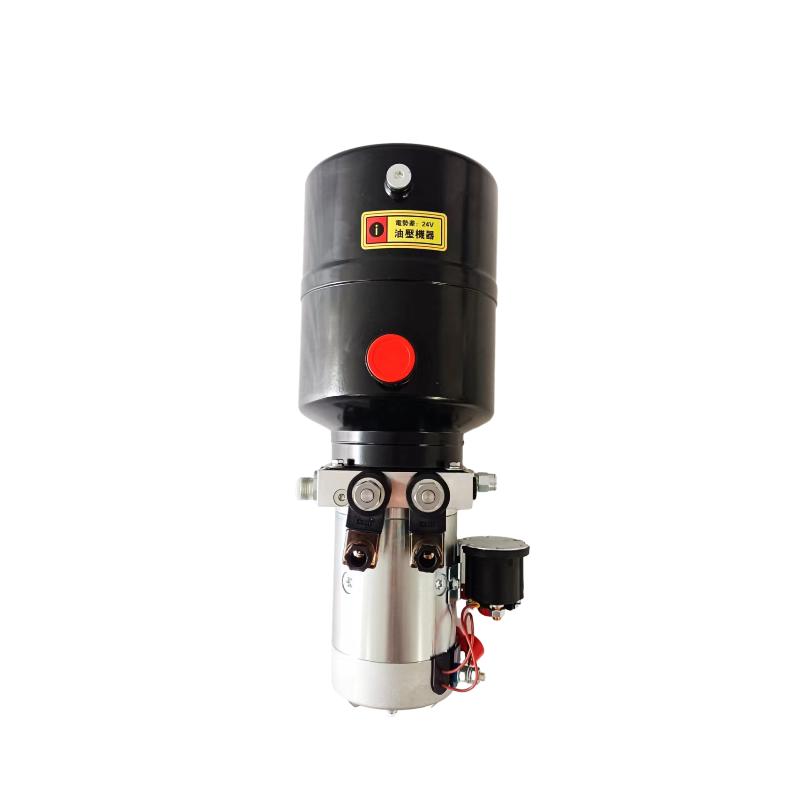

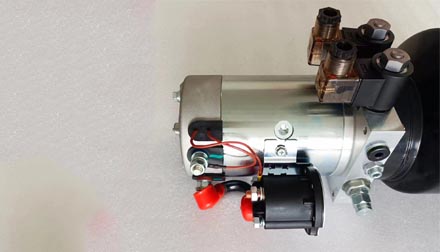

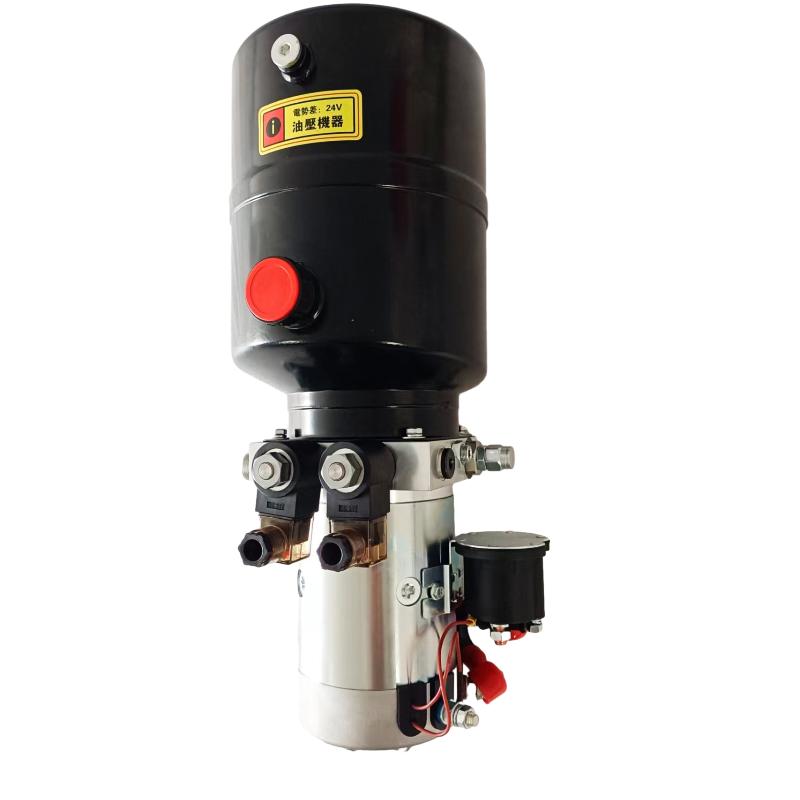

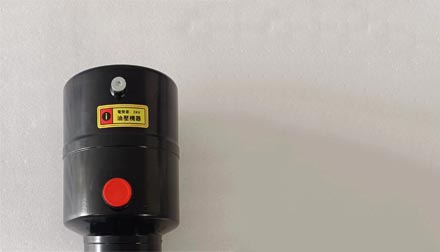

Consisting of high pressure gear pump,DCmotor,multi-functionamanifold,valves and tank, this power unit has been widely used in the industry oflogistic devices such as fork lift, mini lift table and scissors lift. The loweringmovement is controlled by the solenoid valve with the lower speed controlled byadjustable throttle valve. The needle release valve is used for lowering movement incase of power failure.



Download As PDF

Product Detail

Product Tags

Model specifications

Remark: 1. If you need diferent flow pump pressure motor power and other system parameters. Please refer to the model description of the wave pressure power unt.

  1. Manual emergency oil release, if required. Please specify when you place an order.

 Motor voltage

power of motor

Displacement

ml/r

Overflow valve pressure/Mpa

Tank capecity

L（mm）

12V

1.5KW

1.2

20

3.5

411

1.6

5.0

461

2.1

5.0

461

24V

2.2KW

2.1

20

6.0

511

2.5

8.0

581

2.7

8.0

581

Matters needing attention

  1. 1.The duty of this power unit is S3, i.e., 30 seconds on and 270seconds off.
  2. 2.Clean all the hydraulic parts concerned before mounting the power unit.

3.Viscosity of the hydraulic oil shoud be 15-68 cst,which should also be clean andfree of impurities. N46 hydraulic oil is recommended.

  1. 4.Change the oil after the first 100 hours of running the power unit, then changethe oil every 3000 hours.

5.The power unit should be mounted horizontally.
