Auto hoist power units

Read More About Dump trailer power unit

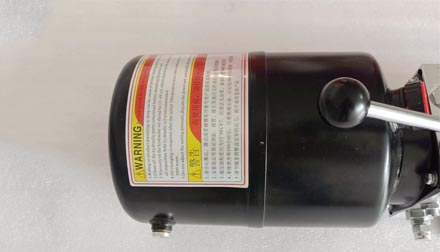

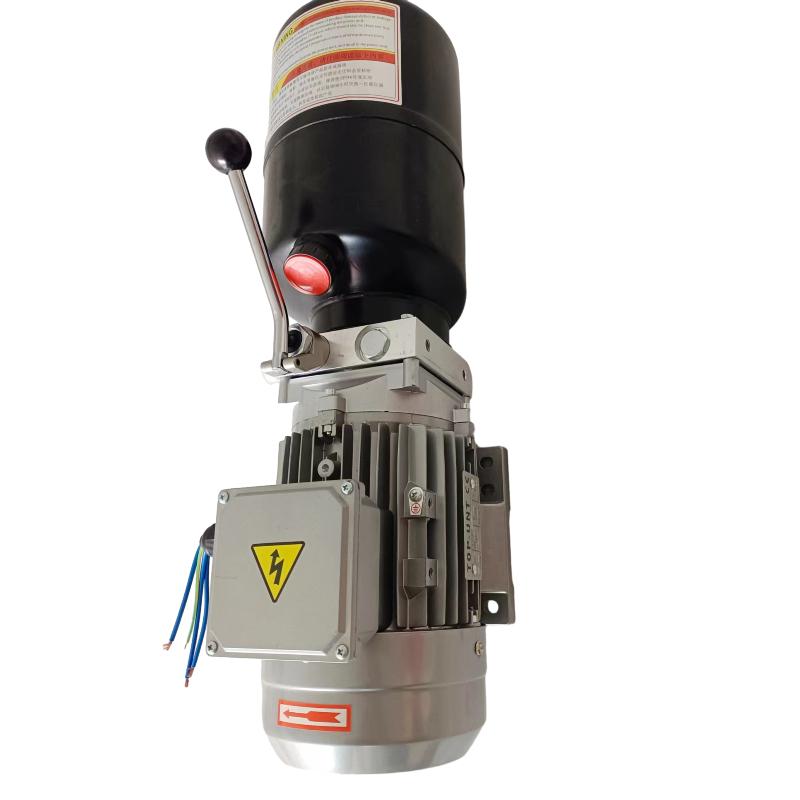

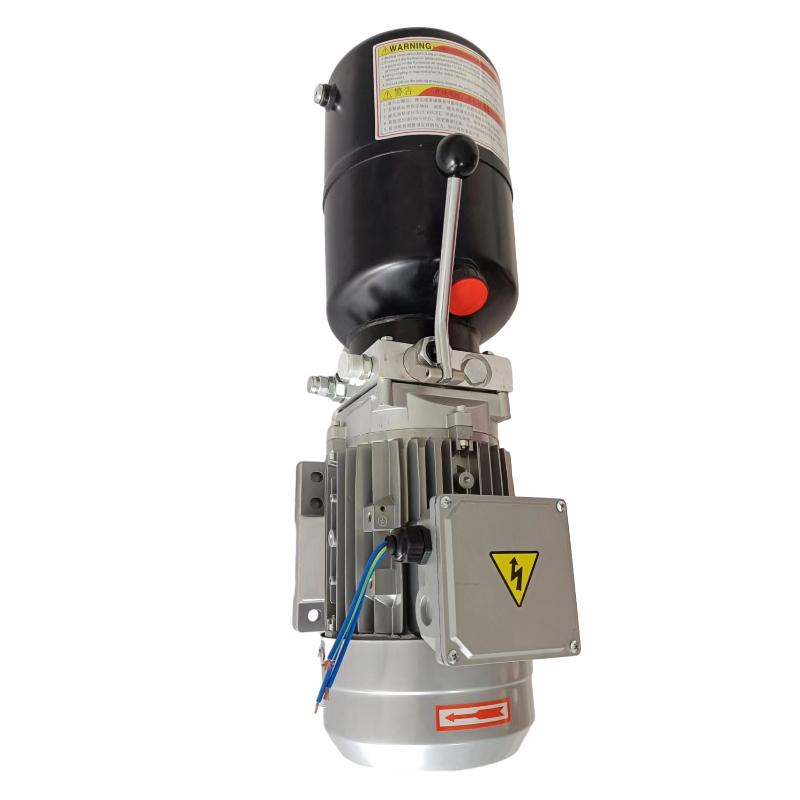

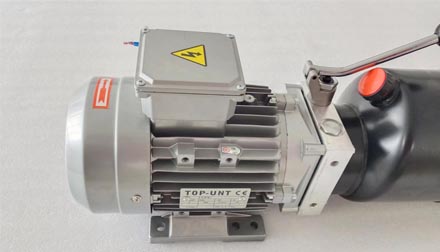

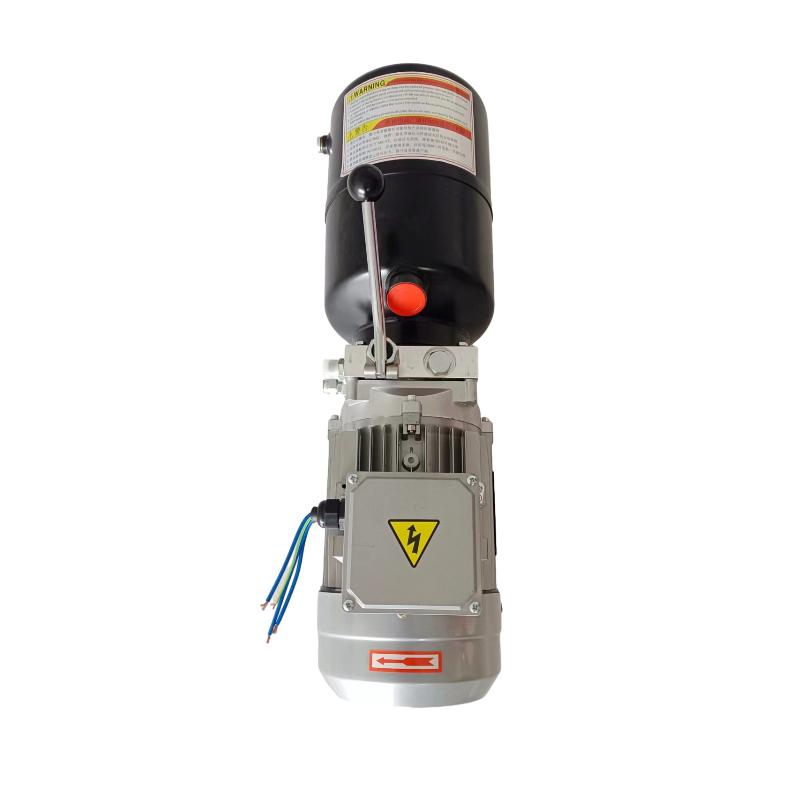

This power unit is designed exclusively for Auto hoist with power up, gravity downfunction. Start the motor to lift the machine, the lowering movement is controlled bythe solenoid release valves. Each solenoid valve provides a seperate loweringspeed.

Send Email to Us Download As PDF

Product Detail

Product Tags

Model specifications

Remark: 1. If you need diferent flow pump pressure motor power and other system parameters. Please refer to the model description of the wave pressure power unt.

Manual emergency oil release, if required. Please specify when you place an order.

Motor voltage	power of motor	Displacement ml/r	Overflow valve pressure/Mpa	Tank capaity	Solenoid Valve Voit
220V	2.2KW	2.7	18	10L	24V
220V	2.2KW	3.2	15
24V	3KW	2.7	10

Matters needing attention

1.The duty of this power unit is S3, i.e., 30 seconds on and 270seconds off.
2.Clean all the hydraulic parts concerned before mounting the power unit.

3.Viscosity of the hydraulic oil shoud be 15-68 cst,which should also be clean andfree of impurities. N46 hydraulic oil is recommended.

4.Change the oil after the first 100 hours of running the power unit, then changethe oil every 3000 hours.

5.The power unit should be mounted horizontally.
